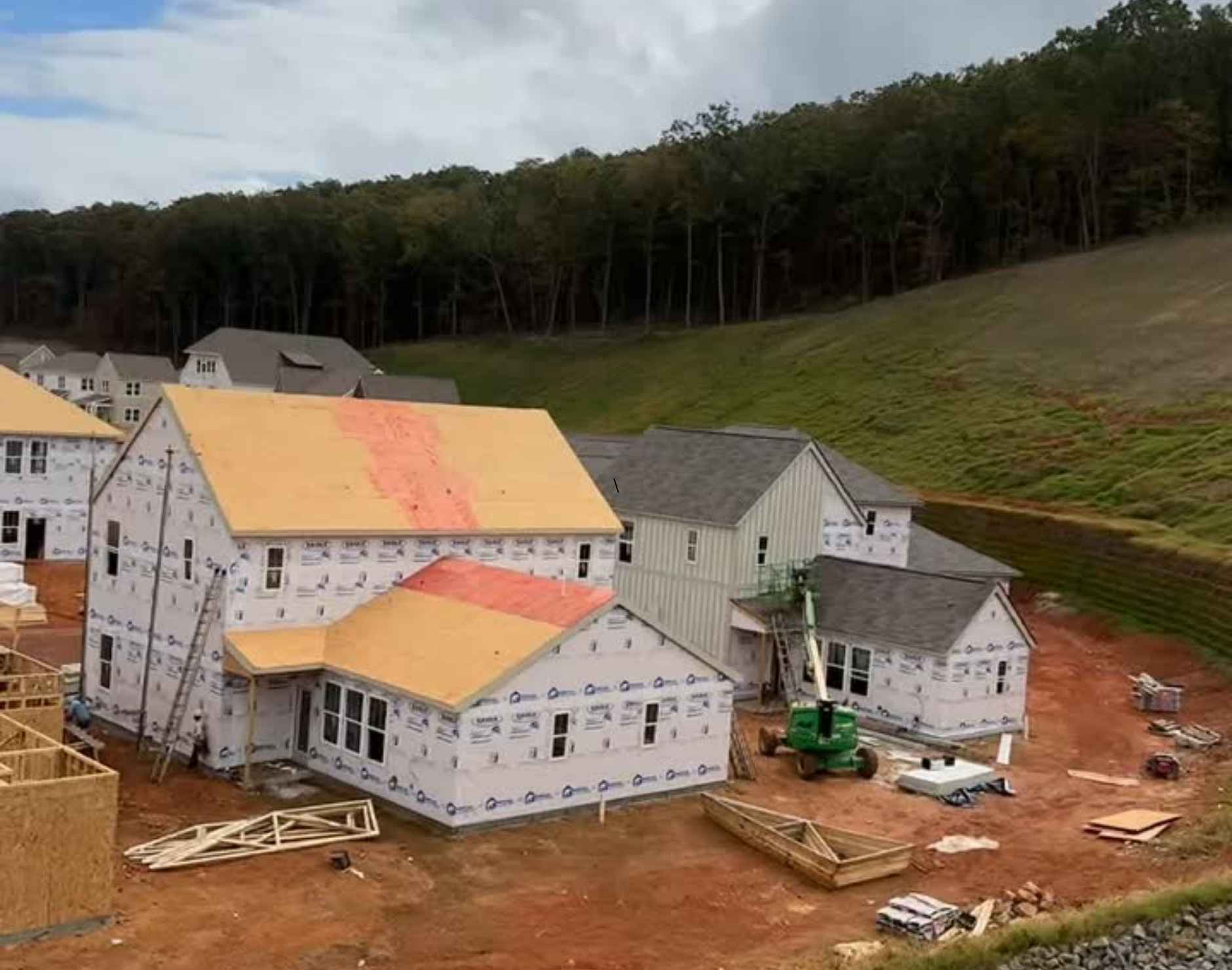

The roof deck nail pattern is the most technically specific and least visible component of your home’s hurricane resistance system — and it is the one most often found non-compliant when a qualified inspector examines pre-2002 Palm Beach County construction. The difference between a compliant and non-compliant nail pattern is not visible from the exterior, is not apparent from the roof surface, and is not documented in any way that most homeowners can access without a professional attic inspection. Yet the nail pattern connecting your plywood deck to your roof framing is the mechanism by which the entire wind load on your roof is transferred to the wall structure below — and an inadequate nail pattern makes everything above it irrelevant when hurricane-force winds arrive.
Why Nail Specification Matters More Than Most People Realize
The structural function of the deck-to-framing nail connection is to resist the withdrawal force — the force pulling the nail out of the wood — that results from wind uplift on the roof surface. When wind blows over a roof, it creates a low-pressure zone that effectively suctions the roof upward. This suction force is transmitted through the roofing covering, through the deck panel, and then into the nails that connect the deck panel to the framing below. If the nails cannot resist the withdrawal force, they pull through the plywood — the panel lifts off the rafter — and the entire roof system fails catastrophically.
The withdrawal resistance of a nail in wood is governed by three variables: the nail’s diameter, the nail’s penetration depth into the receiving member, and the nail’s surface geometry. Nail diameter determines the bearing area against the wood fibers — larger diameter means more resistance per unit of withdrawal force. Penetration depth determines how much of the nail’s surface area is engaged with the receiving member’s wood fibers. Surface geometry — smooth shank versus ring shank versus spiral shank — determines whether the engagement between the nail and the wood is purely frictional or whether it includes mechanical interlock between the nail’s surface features and the wood fibers.
“The post-Andrew code reform didn’t primarily change nail spacing — it changed nail type. Ring-shank nails provide 3-to-4 times the withdrawal resistance of smooth-shank at the same size and spacing. That difference is invisible from the attic but critical in a hurricane.”
Ring-Shank vs. Smooth-Shank: The Performance Difference
The mechanical difference between a ring-shank and a smooth-shank nail is straightforward: the ring-shank nail has annular rings — circular ridges — machined into the shank of the nail below the head. When the nail is driven into wood, the rings compress the wood fibers around them as the nail penetrates. When withdrawal force is applied, the wood fibers must shear along a much larger surface area — essentially the entire ring perimeter multiplied by the number of rings — rather than simply sliding along the smooth nail shank as occurs with smooth-shank nails. This geometric interlock is what produces the 3-to-4 fold withdrawal resistance advantage.
The performance difference between ring-shank and smooth-shank nails is well-documented in industry testing and has been confirmed in post-hurricane field investigation. APA — The Engineered Wood Association — has published test data showing that 8d ring-shank nails in nominal-thickness plywood provide withdrawal resistance values of 140 to 180 pounds per nail depending on plywood density and ring geometry, compared to 40 to 60 pounds per nail for equivalent smooth-shank nails. At a 6/6 nail spacing pattern on a standard plywood panel, this difference translates to a deck attachment system that can resist 2 to 3 times the uplift force before panel separation.
Ring-shank provides 3–4x the withdrawal resistance of smooth-shank Same size, same spacing, dramatically different performance. The ring geometry is the critical variable — not nail head size or shank diameter alone.
Nail type is not visible from the exterior or nail head Ring-shank identification requires direct physical inspection of the nail shank. Visual inspection of nail head spacing alone cannot confirm compliance — type verification requires attic access.
Substitution risk during re-nailing projects is real Pneumatic guns accept both types. Request that the contractor show you the nail strip packaging before re-nailing begins, and verify ring-shank labeling on the collated strips.
Building inspection verifies shank type — not just spacing The deck inspection during re-roofing specifically examines both nail spacing and nail type. A pattern inspection that doesn’t verify ring-shank geometry is not a compliant inspection.
Current Nail Pattern Requirements for Palm Beach County
The 2023 Florida Building Code specifies roof deck attachment requirements through Table R803.2.1.1, which establishes minimum nail size and spacing based on the design wind speed zone and the rafter or truss spacing. For Palm Beach County’s 160 mph design wind speed zone — which applies to the entire county — the requirement is 8d ring-shank common nails at a minimum of 6 inches on center at all panel edges and 6 inches on center in the panel field. This 6/6 pattern applies to both structural plywood and structural OSB panels meeting or exceeding 15/32-inch thickness.
The 8d designation specifies both the nail’s wire gauge diameter — 0.131 inches — and its minimum length — 2.5 inches. The length specification ensures adequate penetration into the receiving member. For standard 2x rafter or truss chord framing, a 2.5-inch nail provides approximately 1.5 inches of penetration into the framing member after passing through a 15/32-inch or 19/32-inch panel — a penetration depth that achieves the minimum engagement required for the rated withdrawal resistance at this nail size and ring geometry.
“The 6/6 pattern is not conservative overkill — it is the engineering response to the pressure cycling that occurs during hurricane conditions. Even the field area of a deck experiences uplift cycling that a 6/12 pattern was not designed to resist.”
Verifying Your Home’s Deck Nailing
Determining your home’s current deck nail pattern requires an attic inspection by someone who knows what to look for — the specific combination of nail type, nail size, and spacing that determines which OIR-B1-1802 Section B rating your building qualifies for. The good news is that this inspection is straightforward, non-destructive, and takes approximately 30 to 45 minutes in a typical residential attic with standard accessibility.
The inspection protocol begins with measurement of the nail spacing at representative panel edges and field locations. The inspector uses a ruler to measure the center-to-center distance between nails along the edge of a plywood panel at the rafter location, and then measures the field nail spacing across the panel surface between rafters. Multiple sample locations — minimum four to six representative locations across the attic — provide a statistically meaningful picture of the installed nail pattern throughout the deck.
Current standard: 8d ring-shank at 6/6 throughout Both nail type and spacing must meet this specification for maximum Section B wind mitigation credit and full HVHZ compliance. Half-measures in either dimension produce reduced performance and reduced credit.
Exposure Category D requires edge clips in addition Properties within the coastal salt spray zone need H-clips at unsupported panel edges on top of the 8d ring-shank 6/6 pattern. Verify your Exposure Category with your contractor before finalizing specifications.
Re-nailing is most cost-effective during re-roofing Attic access, labor mobilization, and permit costs are shared. The incremental cost of adding re-nailing to a re-roofing project is typically 50–60% less than a standalone project.
Deck inspection is the only way to know your actual pattern Construction era, permit records, and prior wind mitigation reports are all useful context — but none of them substitute for direct attic inspection to confirm what is actually installed.
